Product Details:
|
| Name: | OVERHEAD PRIMARY TAPS | Material: | H.D.G Steel |
|---|---|---|---|
| Application: | A | Weight: | 0.245KGS/ 0.33KGS |
| Standard Or Nonstandard: | Standard | Customade: | Available |
| Status: | New | Range: | Main: 0.414 - 0.128 Inch Tap: 0.438 - 0.128 |
| Highlight: | 0.438'' Pole Line Hardwares,S1530AGP Pole Line Hardwares,0.438in hot line clamp |
||

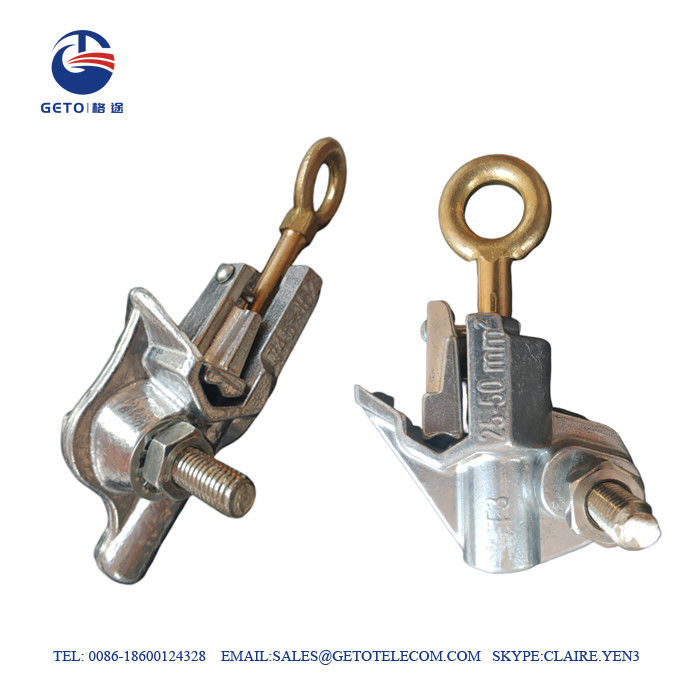

Aluminum Overhead Primary Taps Hot Line Tap Clamps
Overview
ALUMINUM OVERHEAD PRIMARY TAPS are cast with high conductivity aluminum alloy compatible with any aluminum of aluminum covered conductor. An endorsed compression spring on the eye srew thread in clamp run provided vibration resistant connection
Feature
1- Brass and aluminum alloy castings offer high strength, corrosion-resistance and conductor compatibility
2-Extended jaw width means excellent conductor contact, reduced joint temperature, minimal conductor cold flow and reduced twisting of the conductor during installation
3-Spring loaded feature compensates for cold flow and offsets tightening torque vibrations
4-Forged eyebolts provide corrosion free strength and uniformed expansion under loading
5-The side positioned tap connection prevents possible corrosion of conductor or clamp on bimetal connections
| Article | Tap of Connector | Main Line Range | Tap Line Range | Recommended Torque | ||
| No | Main | Tap | Diameter Inch | Diameter Inch | Eyescrew | Terminal |
| S1520APG | Al | Al | 0.414-0.128 | 0.438-0.128 | 180 in-lb. | 180 in.-lb. |
| S1530APG | Al | AL | 0.745-0.162 | 0.547-0.162 | 200 in.-lb. | 250 in.-lb. |
| Part Name | Qty | Material |
| Body | 1 | Al-alloy |
| Keeper | 1 | Al-alloy |
| Tap Eye Bolt | 1 | Brass tin plate |
| Eye Screw | 1 | Brass |
| Spring Washer | 1 | Stainless |
Application
