Product Details:
|
| Product Name: | Insulation Piercing Connector | Cable Size: | 1.5-240sqmm |
|---|---|---|---|
| Voltage: | 1KV | Material: | Nylon+Copper/aluminum |
| Application: | Bonding Galvanized Strand With Copper Ground Wire. | Weight: | 0.153KGS |
| Standard Or Nonstandard: | Standard | Customade: | Available |
| Status: | New | ||
| High Light: | 240 sq mm Insulation Piercing Connector,ABC Insulation Piercing Connector,1kv self piercing tap connectors |
||

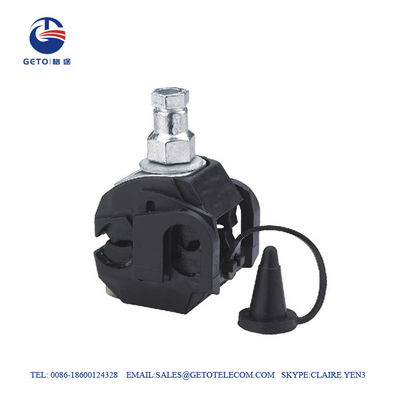

1KV LV ABC Insulation Piercing Connector
Overview
I.P.C (Insulation Piercing Connector) is used to establish a tap connection from low voltage ABC (Aerial Bundled Conductors) to a low voltage aluminium alloy or copper bare main conductor.
| Type | Main Line Section (sqmm) | Branch Section (sqmm) | Norminal Current (A) | Outline Size (mm) | Weight (g) | Piercing Depth (mm) | Bolt Number (pcs) |
| JJC-1 | 1.5-25 | 1.5-10 | 55 | 27*41*62 | 55 | 1.5-2 | 1 |
| JJC-2 | 16-95 | 1.5-10 | 55 | 27*41*62 | 55 | 1--2 | 1 |
| JJC-3 | 16-95 | 4-35(50) | 157 | 46*52*87 | 160 | 2.5-3.5 | 1 |
| JJC-4 | 50-150 | 6-35(50) | 157 | 46*52*87 | 162 | 2.5-3.5 | 1 |
| JJC-5 | 25-95 | 25-95 | 214 | 50*61*100 | 198 | 3-4 | 1 |
| JJC-6 | (35)50-150 | (35)50-150 | 316 | 50*61*100 | 219 | 3-4 | 1 |
| JJC-7 | 120-240 | 25-120 | 211 | 52*68*100 | 280 | 3-4 | 1 |
| JJC-7-1 | 150-240 | 10-25 | 102 | 52*68*100 | 603 | 3-4 | 1 |
| JJC-8 | 95-240 | 95-240 | 425 | 83*13*130 | 1020 | 4-5 | 2 |
