Product Details:
|
| Material: | Nylon+Steel | Breaking Force: | 12KN |
|---|---|---|---|
| Cable Size: | 12-16mm | Name: | FTTH Anchoring Clamp |
| Sample: | Free Sample Available | Standard Or Nonstandard: | Standard |
| Customade: | Available | Status: | New |
| Span Lenght: | Less Than 100M | ||
| High Light: | PA2000 Cable Tension Clamp,12KN Cable Tension Clamp,16mm wire tension clamp |
||

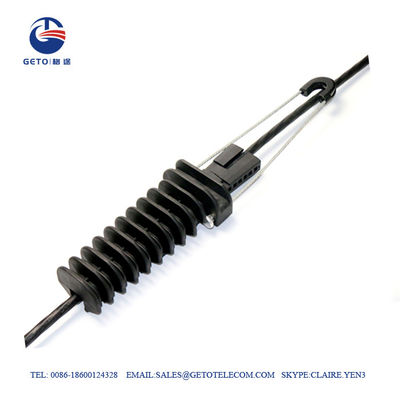

12 - 16 mm 12KN FTTH PA2000 Anchoring Clamp ADSS Cable Clamp
Overview
FTTH Anchoring Clamp available either separately or together as assembly with Adss Fo cable bracket and stainless steel band.
Feature
1, Tools-free cable clamp installation
2, The clamp consists of self-adjusting plastic wedges, which clamp the optical cable without damaging.
3, Installation on any pole hardware fitting: brackets, cross-arms or eye bolt with a min eye of diameter 15mm
4, Locking projections in wedge provides sufficient contact with cable sheath, min 25 years of service in tropical environment
Specification
| Model | Material | Available Cable (mm) | Breaking Force (kn) |
| PA500 | nylon body+steel bail | 4-8 | 4 |
| PA1500 | 9-12 | 10 | |
| PA2000 | 12-16 | 12 |
Advantage
Application
anchor clamp/anchoring clamp can be used in anchoring end pole, jointing pole, intermediate angle pole.
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
