Product Details:
|
| Product Name: | Insulation Piercing Connector | Cable Size: | 1.5-240sqmm |
|---|---|---|---|
| Voltage: | 1KV | Material: | Nylon+Copper/aluminum |
| Application: | Bonding Galvanized Strand With Copper Ground Wire. | Weight: | 0.153KGS |
| Standard Or Nonstandard: | Standard | Customade: | Available |
| Status: | New | ||
| High Light: | ISO9001 Insulation Piercing Connector,1000V Insulation Piercing Connector,1KV insulated piercing connector for abc cable |
||
Copper Aluminum LV Insulated Clamp IPC for ABC Line
Overview
I.P.C (Insulation Piercing Connector) is used to establish a tap connection from low voltage ABC (Aerial Bundled Conductors) to a low voltage aluminium alloy or copper bare main conductor.
Feature
1. Piercing connector, simple installation, need not strip the cable coat
2. Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.
3. Self-seam frame,wetproof,waterproof,and anti-corrosion,extend the using life of insulated lead and connector.
4. Adopted special connecting tablet, apply to joint of Cu(AI) and Cu(AI) or Cu and AI.
5. Small electric connecting resistance, connecting resistance less than 2.5 times of the resistance of branch conductor with the same length . in accordance with the standard DL/T765.1-2001
6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12kV.
7. Arc surface design , apply to connection with the same (differnet) diameter, wide connection scope (0.75mm2-400mm2/td)
| Type | Main Line Section (sqmm) | Branch Section (sqmm) | Norminal Current (A) | Outline Size (mm) | Weight (g) | Piercing Depth (mm) | Bolt Number (pcs) |
| JJC-1 | 1.5-25 | 1.5-10 | 55 | 27*41*62 | 55 | 1.5-2 | 1 |
| JJC-2 | 16-95 | 1.5-10 | 55 | 27*41*62 | 55 | 1--2 | 1 |

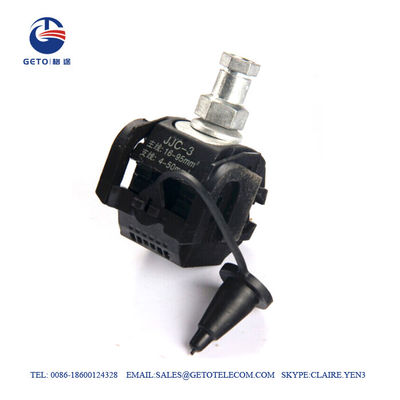

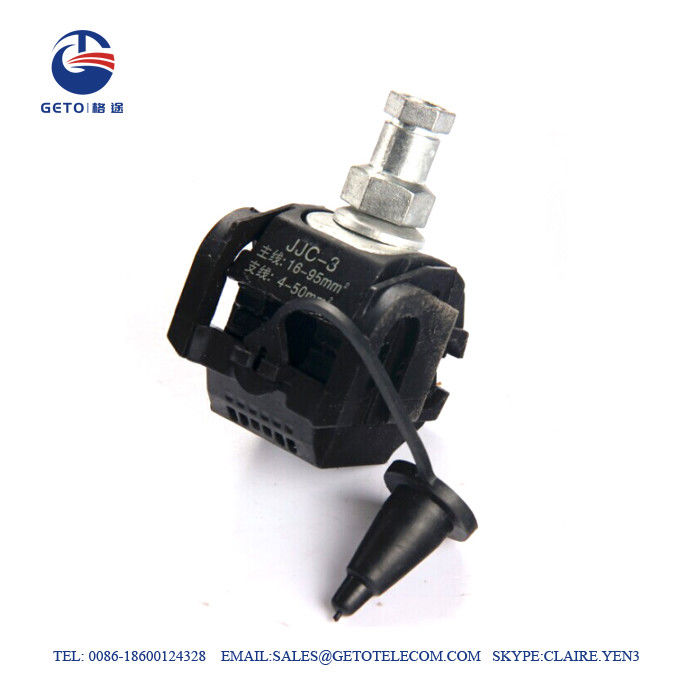

| JJC-3 | 16-95 | 4-35(50) | 157 | 46*52*87 | 160 | 2.5-3.5 | 1 |
| JJC-4 | 50-150 | 6-35(50) | 157 | 46*52*87 | 162 | 2.5-3.5 | 1 |
| JJC-5 | 25-95 | 25-95 | 214 | 50*61*100 | 198 | 3-4 | 1 |
| JJC-6 | (35)50-150 | (35)50-150 | 316 | 50*61*100 | 219 | 3-4 | 1 |
| JJC-7 | 120-240 | 25-120 | 211 | 52*68*100 | 280 | 3-4 | 1 |
| JJC-7-1 | 150-240 | 10-25 | 102 | 52*68*100 | 603 | 3-4 | 1 |
| JJC-8 | 95-240 | 95-240 | 425 | 83*13*130 | 1020 | 4-5 | 2 |
